Trinias unity edition (C8/F8)

Trinias unity edition
Spire in cardiology (Type C8, F8)



unity: unlimited intelligent technology

  • Personalize your experience for ultimate flexibility
  • Limitless Potential for Efficient Workflow
  • Intelligent design for intelligent care






SCORE* Imaging

*Shimadzu Challenge of Revolution

Experience the Next Frontier of Intervention



SCORE PRO Advance

SCORE PRO Advance provides high-quality radiographic and fluoroscopic images with less motion-artifacts and a lower dose. Above all, the new motion-tracking noise reduction technology minimizes noise and allows sufficient visibility of the tip of the guide wire and catheter.







New: Flex-APS

This real-time artifact optimization technique is an automatic offset function for improving misregistrations of DSA. Flex-APS automatically detects and optimizes the sectional pixel movement gap between MASK image and each frame image regardless of ROI’s movement direction such as twisting.





SCORE RSM

SCORE RSM is an extremely motion-tolerant DSA technique. This application is especially effective for tracking across the entire lower extremities, 3D imaging in combination with C-arm movement and examinations on patients who have difficulties holding their breath.





New: SCORE Chase (Option)

SCORE Chase is for real-time whole peripheral observation. The long-view whole peripheral image is stitched and displayed automatically without time lag. This application is available for SCORE RSM or Digital Acquisition mode.





SCORE StentView (Option)

SCORE StentView is a software developed specifically to support PCI procedures based on real-time image processing technology, a specialty of Shimadzu. Stents move with the pulse beat. However, SCORE StentView displays stents in a fixed position, not through post-processing but rather in real-time. This is particularly effective for assessing positional relationships between overlapping stents, or when re-expanding a stent using a balloon.

As a key feature, a function for specifying the region of interest (ROI) is available. It allows multiple markers to be used for automatic detection, rather than two markers as in previous versions, contributing to higher detection efficiency and shorter examination times.







SCORE 3D (Option)

SCORE 3D Angiography application allows automatic rapid display of the 3D reconstructed images after rotational radiography. With a top rotational image acquisition speed of 60 degrees per second, the shorter contrast medium injection time reduces the burden on patients and ensures high image quality.



SMART* Design - Intelligent design delivers reliable workspace

*Shimadzu Makes Advanced Remarkable Technology

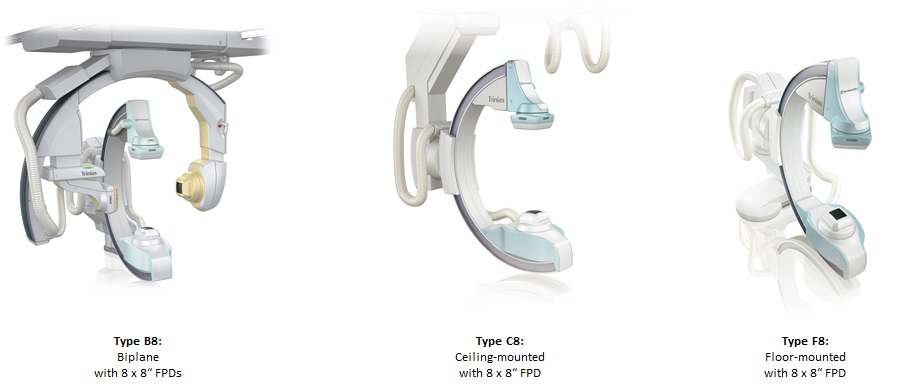

High-performance C-arm series

Trinias unity edition provides both, ceiling- and floor-mounted high-performance C-arms.



Type C8: ceiling-mounted with 8 x 8“ FPD

Type F8: floor-mounted with 8 x 8“ FPD



New: SMART Table

The multi-functional patient table supports flexible table positioning by tilting functions.





New: SMART Touch

During the procedure, imaging operations such as selecting acquisition modes, and switching reference images and display layouts are integrated into the intuitive and customizable touch panel console. Three layouts of the touch panel console are available. The size and the number of displayed icons as well as their order are customizable, enhancing crossover usage for different clinical background users.



SMART Display (Option)

Every necessary image data can be placed freely on the 58” color LCD monitor, and the layout of images can be customized by SMART Touch at table side.



SMART Access

The ceiling-mounted C-arm can be moved horizontally in both longitudinal and lateral directions at every C-arm position in the Trinias unity edition C8. The floor type Trinias unity edition F8 C-arm with 6 pivot unique movement enhances the wide coverage, which breaks through the stereotype of Flooring C-arm coverage.



SMART Assist

The Cyber console at table side controls the C-arm and supports the easiest operation style for every physician.



SMILE* Concept
*Shimadzu Makes Innovation in Life for Everyone
Safety and comfort for patients and operator



SMILE Color

Trinias has been designed in smart form with pleasant colors such as light green and white. This inspires both patients and clinical users with relaxed confidence.



SMILE Dose-eye

7 dose reductive functions support full patient care as a top safety system.



SMILE Recovery

Image backup functions by data mirroring and back-up filament ensure high safety standards.
